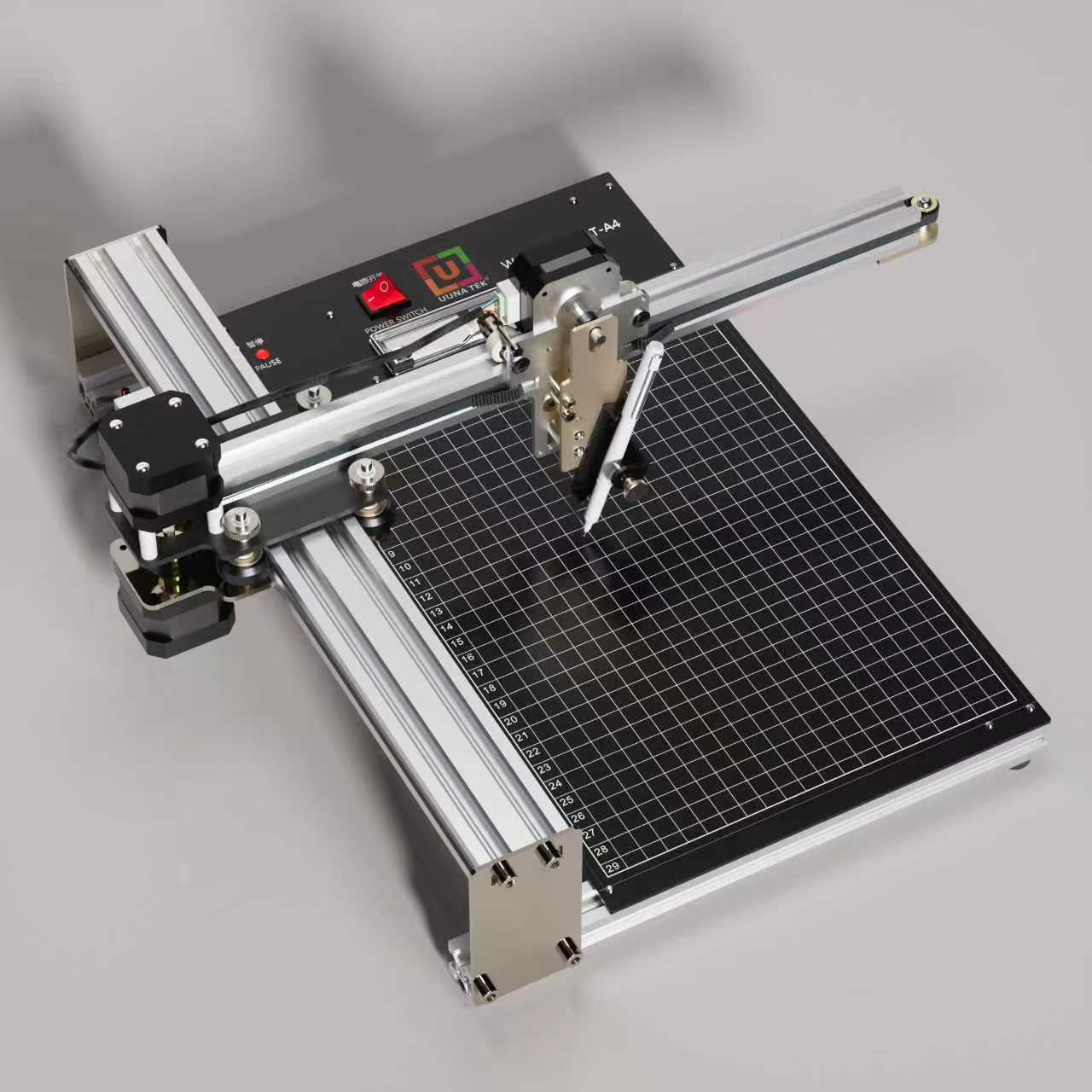

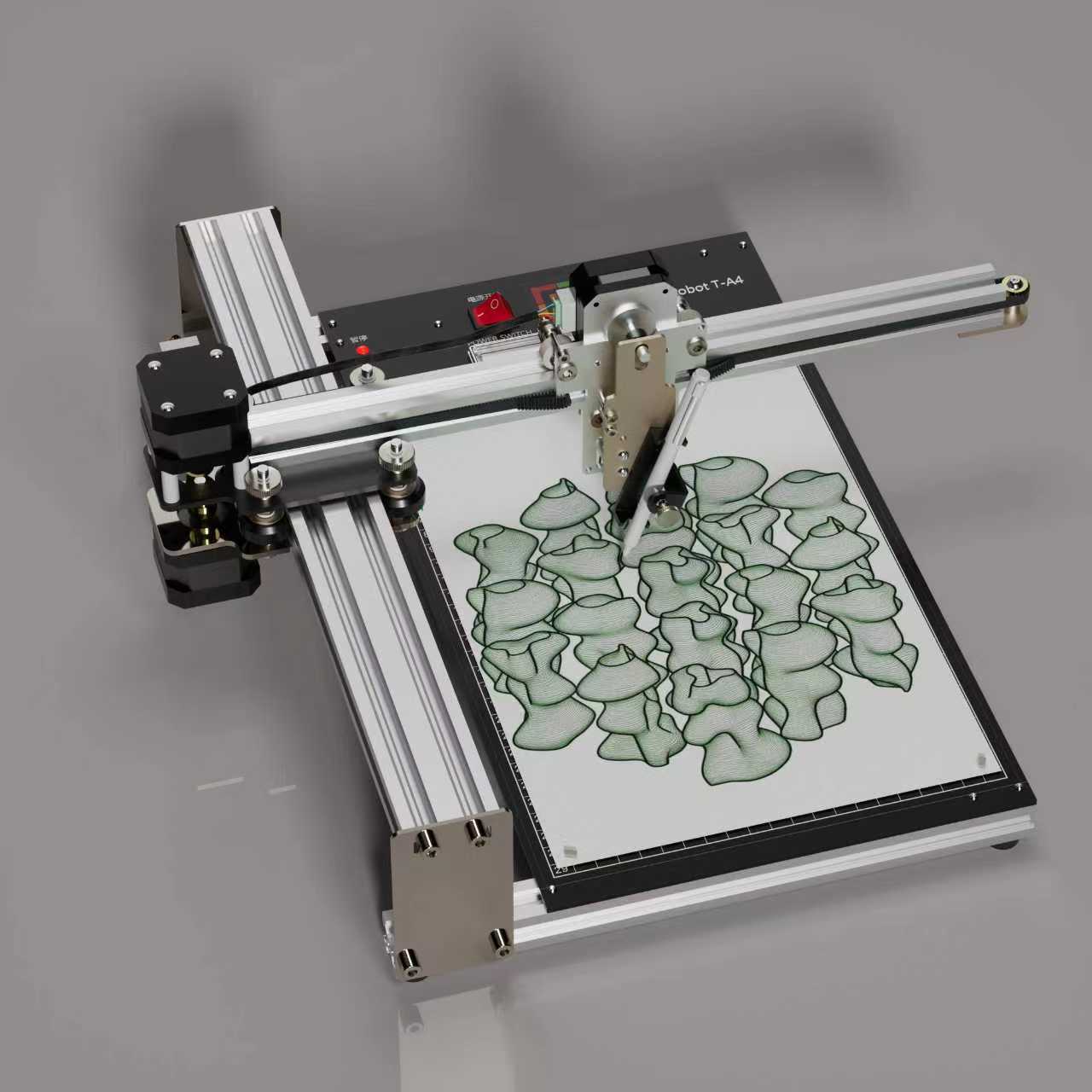

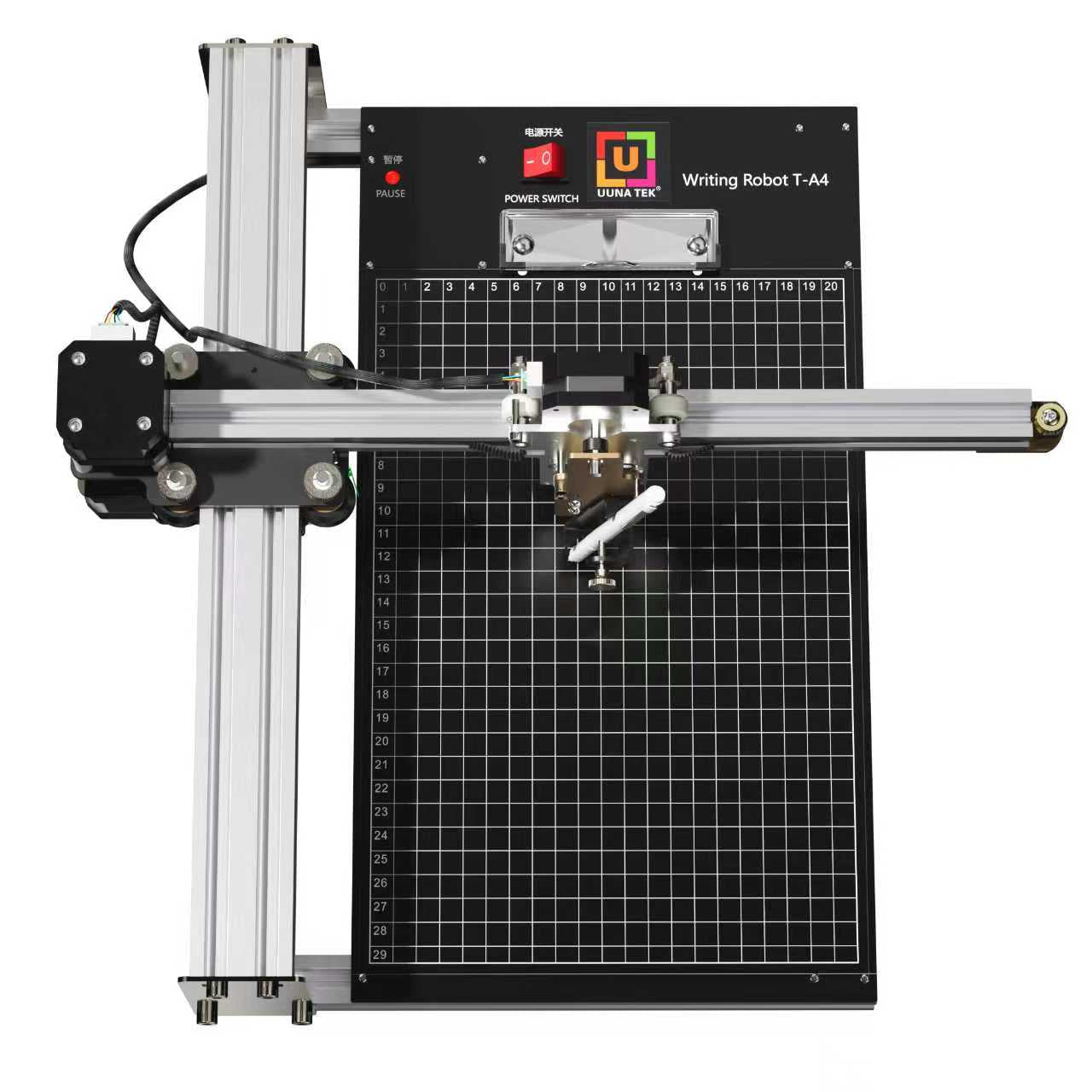

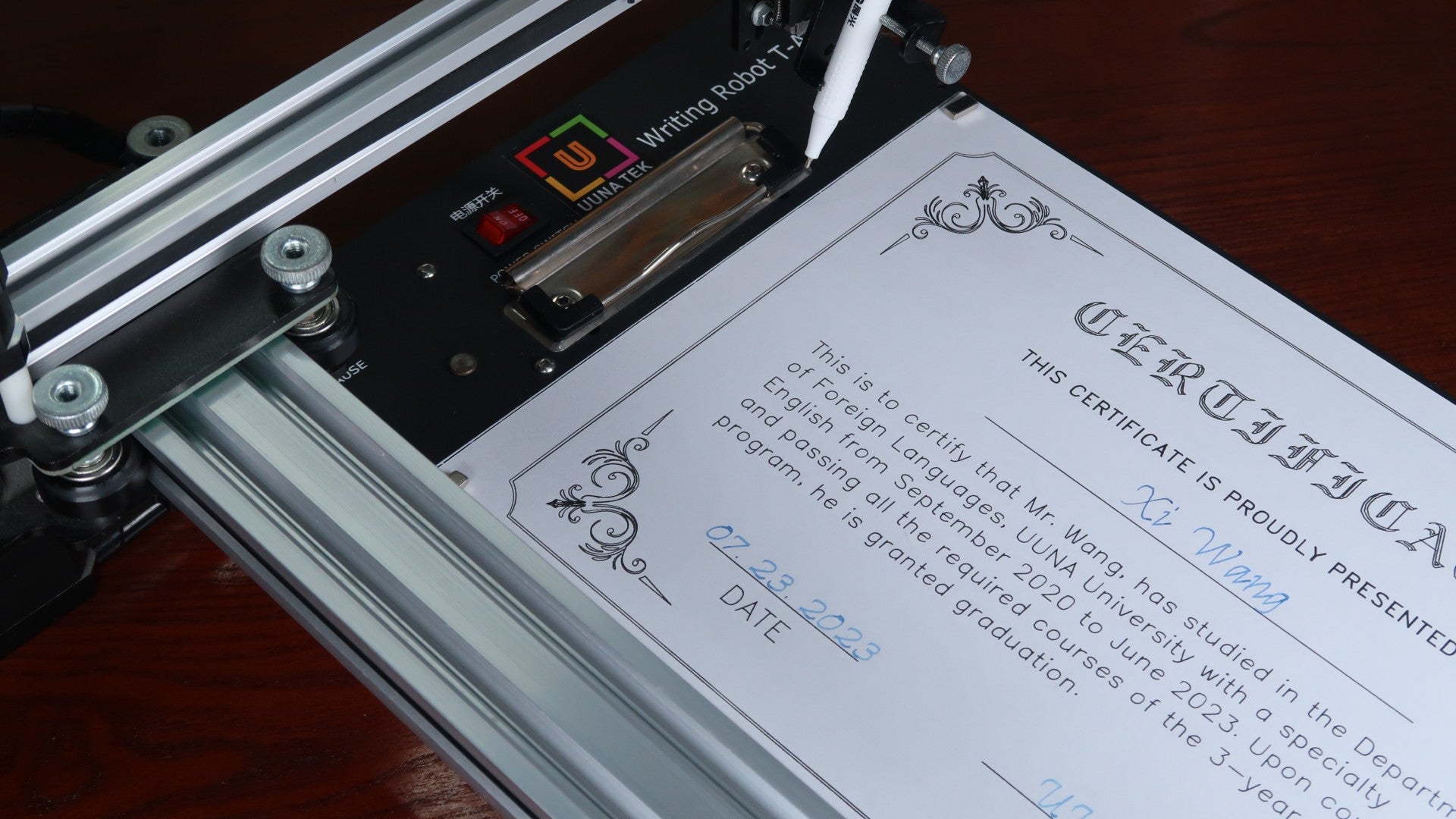

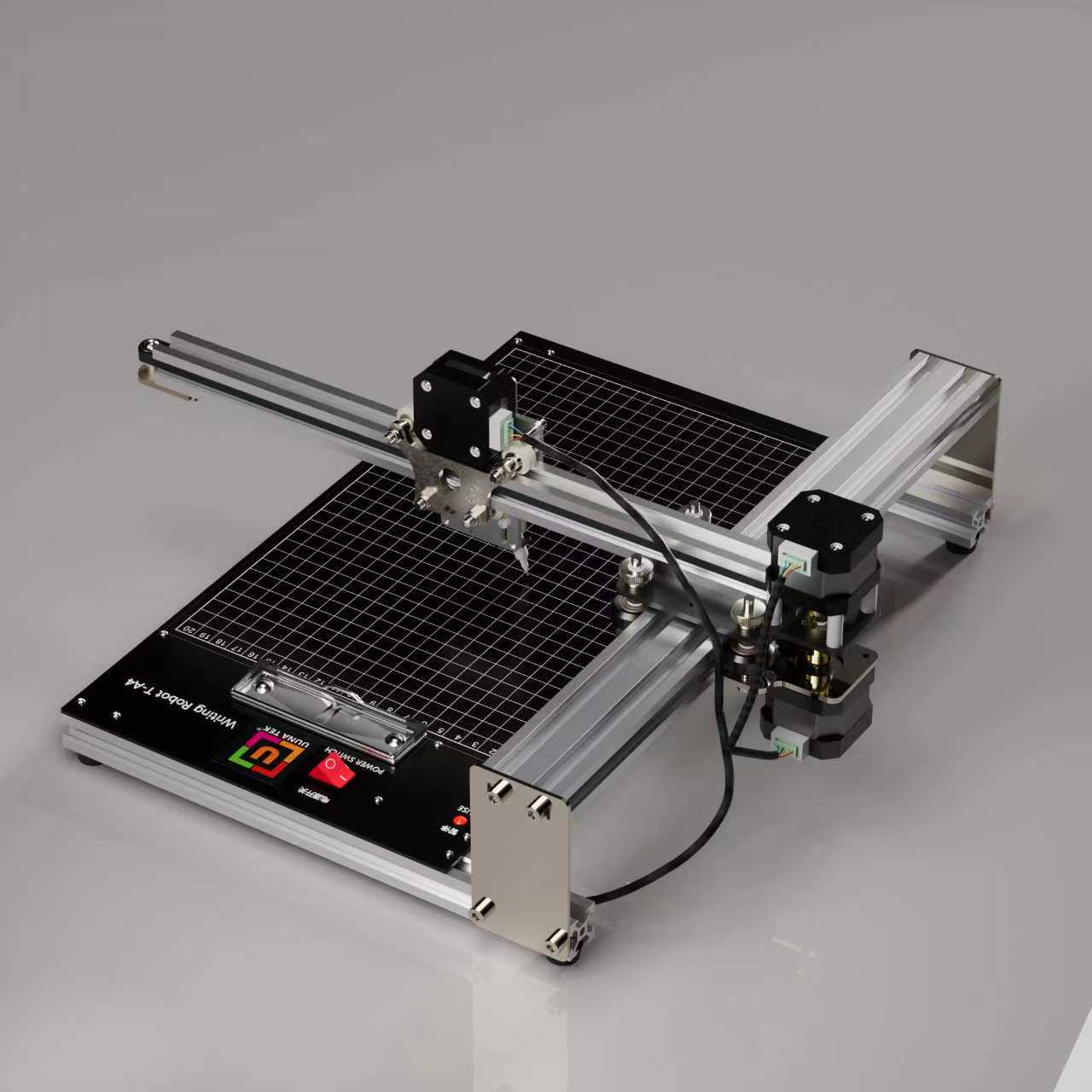

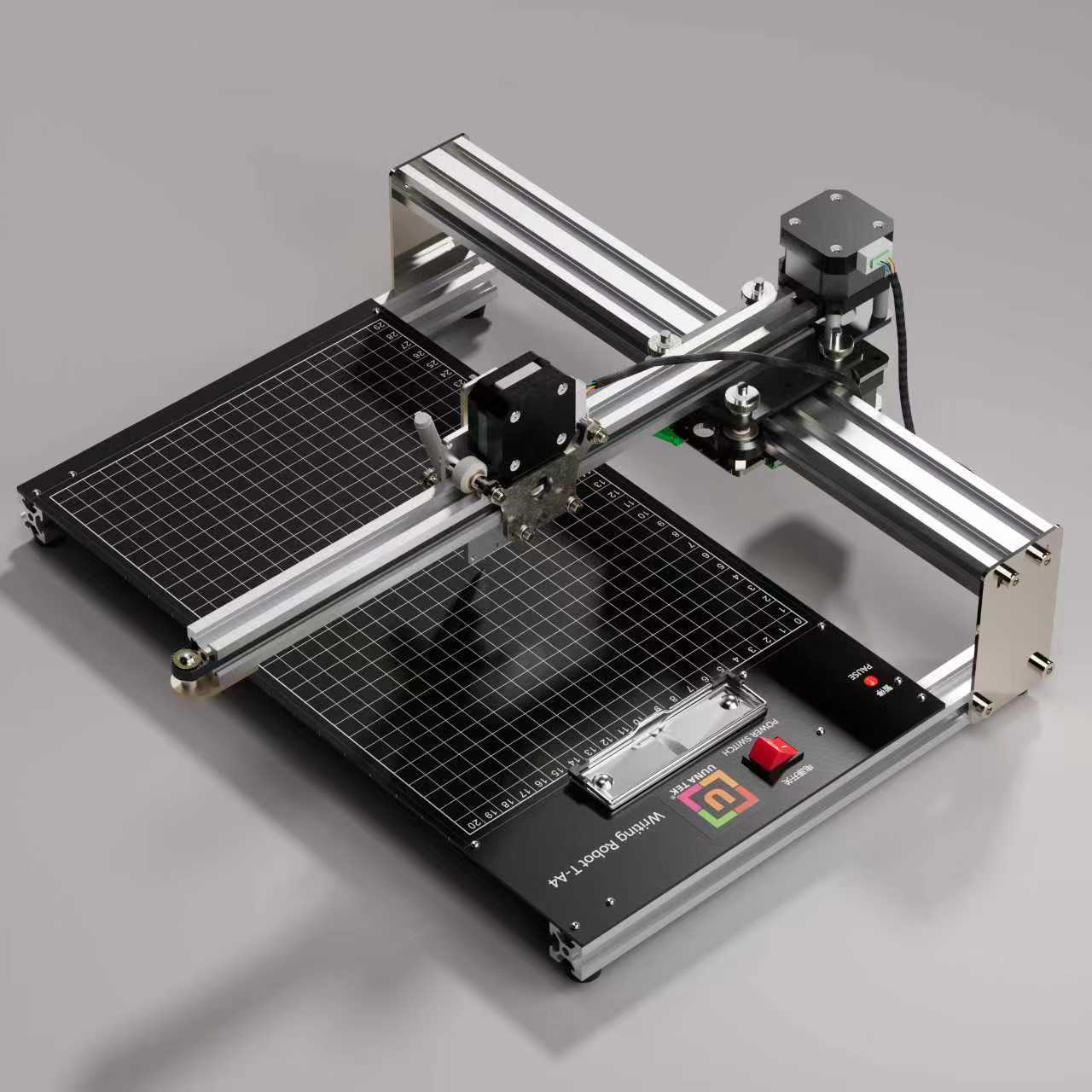

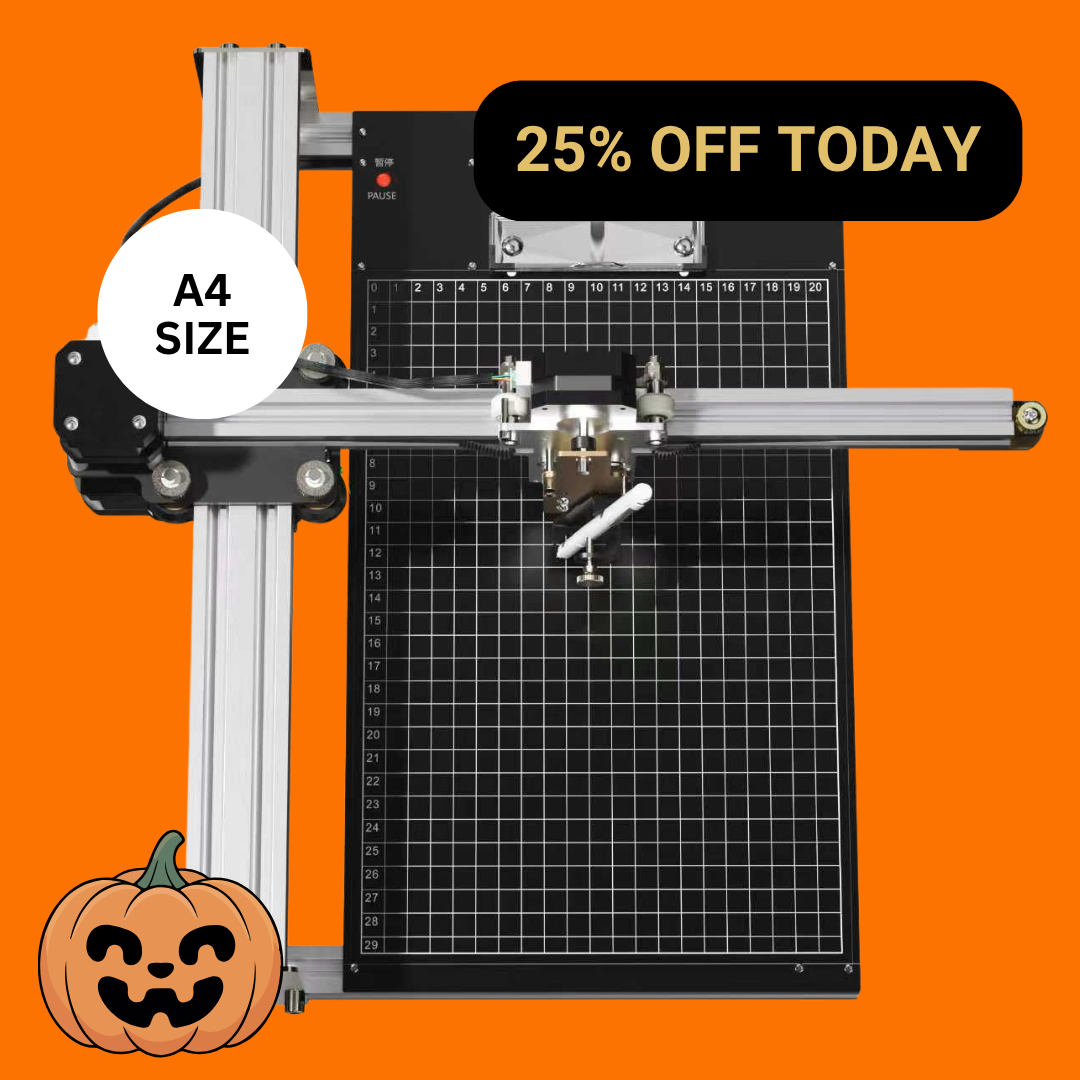

¿Estás listo para llevar tus proyectos creativos al siguiente nivel? No busques más allá del UUNA TEK® iDraw 2.0 - Tamaño A4 Robot de Dibujo/Máquina de Dibujo/Máquina para Tareas/Plotter de Caligrafía/Robot de Escritura/Plotter de Bolígrafo/Grabador Láser, diseñado para dar vida a tus ideas con precisión y versatilidad. Ya seas un artista, un entusiasta del bricolaje o un profesional que busca una herramienta confiable, este dispositivo de última generación es tu puerta a posibilidades ilimitadas.
Delivered anywhere in the world at no extra cost.
Hassle-free returns or exchanges within 30 days.
Support for your machine for its entire lifetime.
Help available via email, chat, or Zoom.
Learn to set up and use your machine easily.

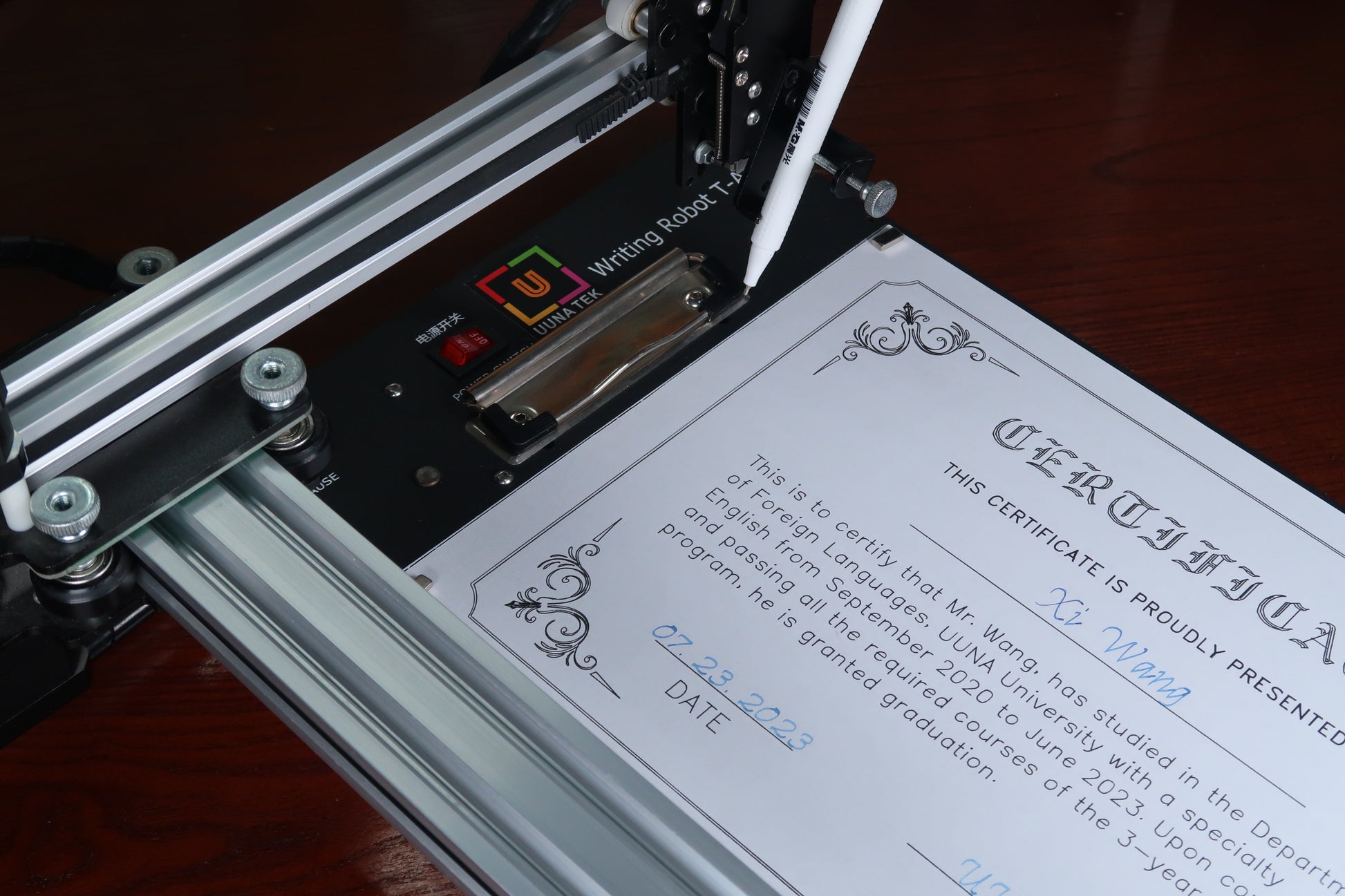

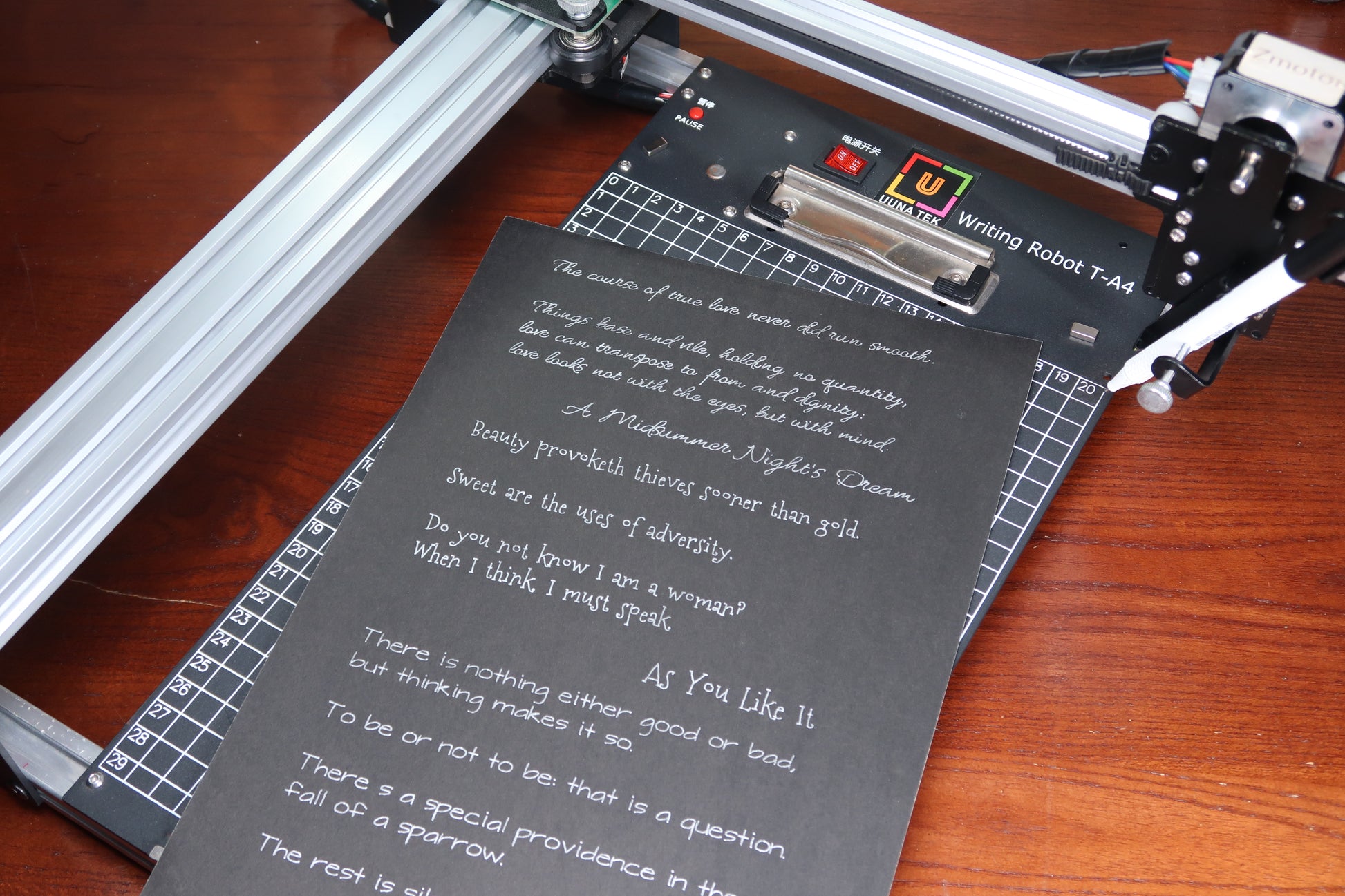

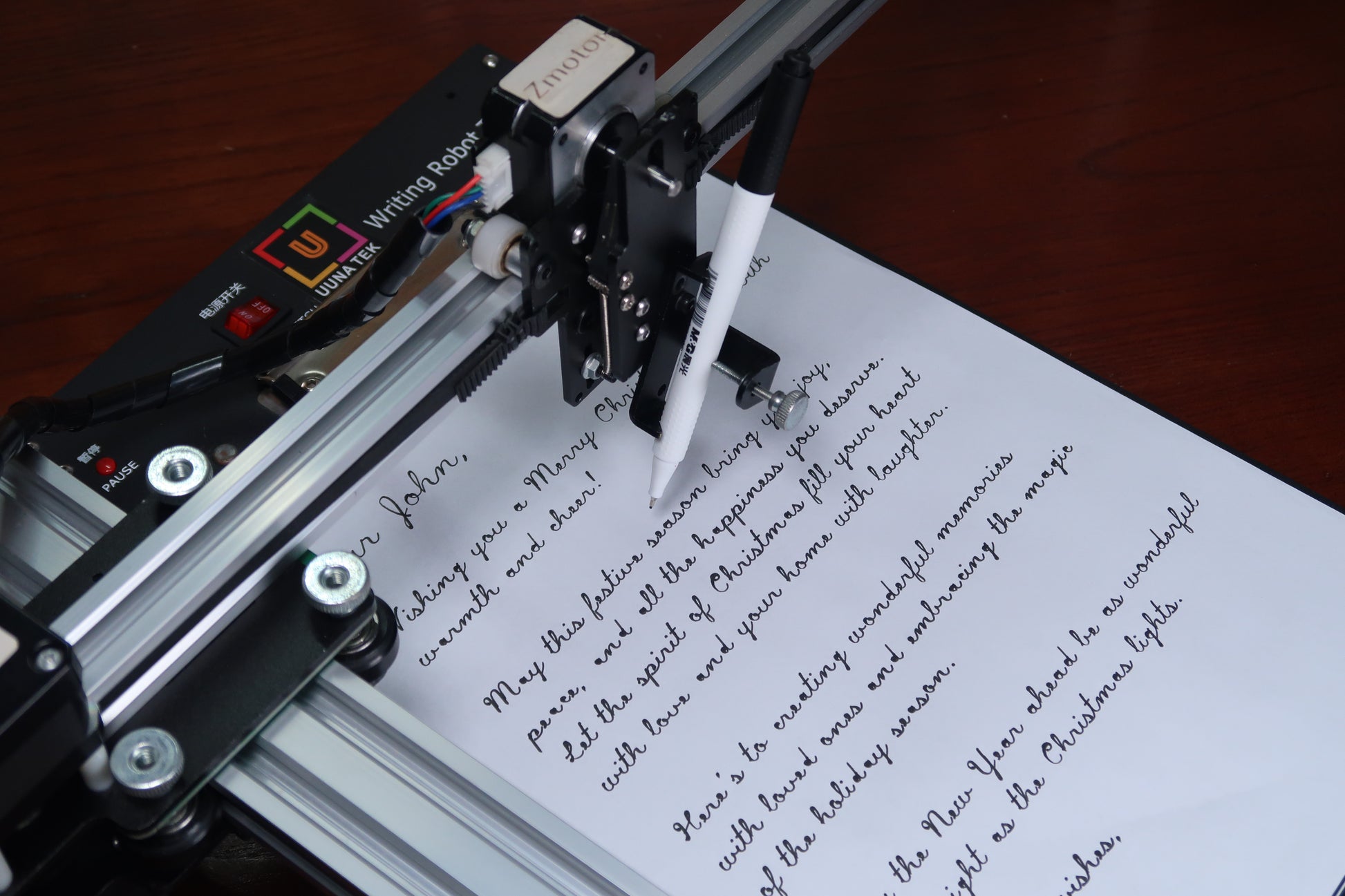

Todos los plotters de pluma UUNA TEK iDraw admiten la combinación de correo electrónico para la escritura masiva de cartas, sobres, tarjetas e invitaciones. Utilice las fuentes Hershey para una escritura a mano similar a la humana.
Nuestra última versión es la máquina de escritura a mano más rápida, con un increíble aumento del 200% en velocidad en comparación con el Axidraw, lo que la convierte en la opción definitiva para quienes exigen resultados en tiempo récord.

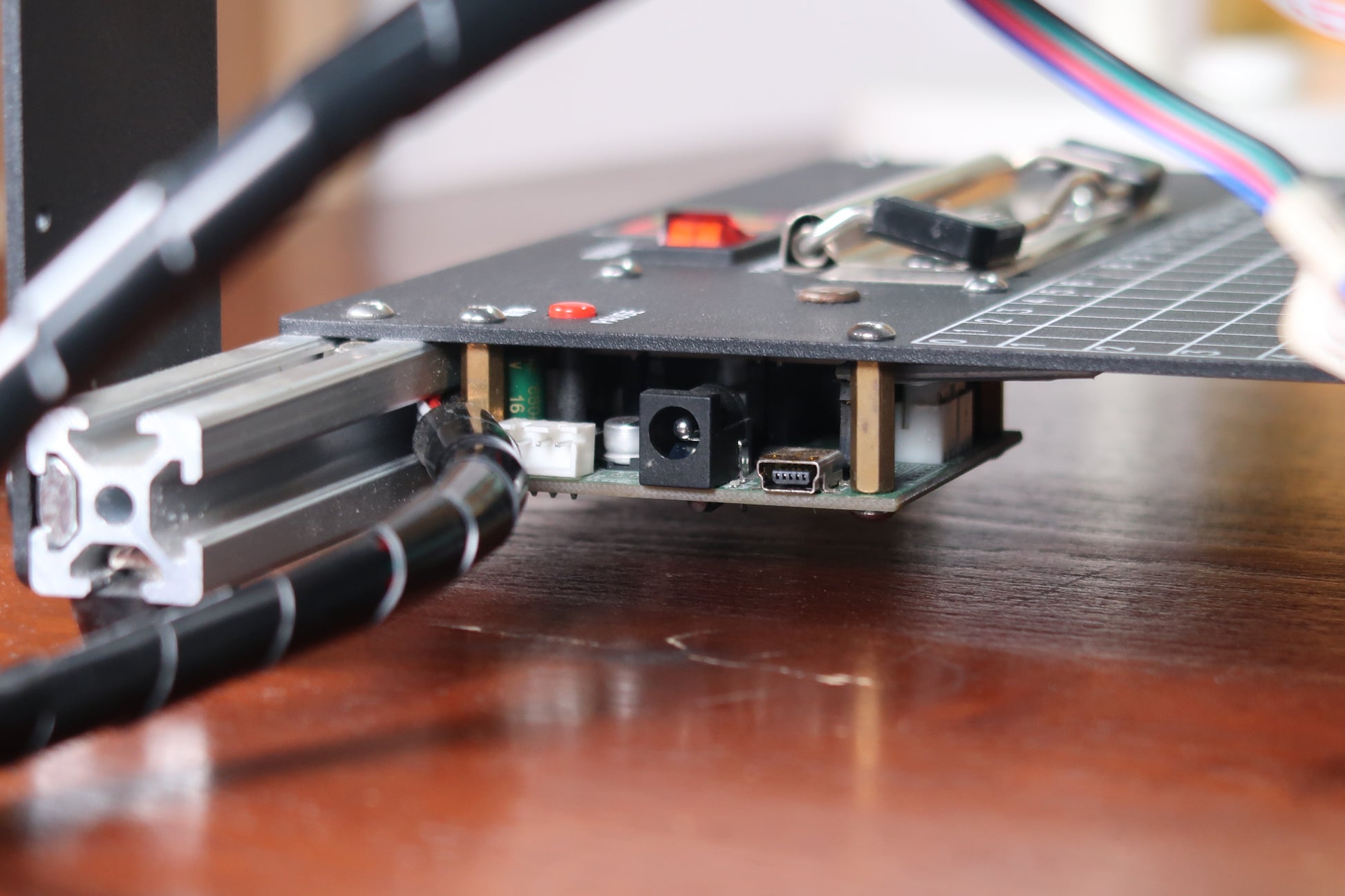

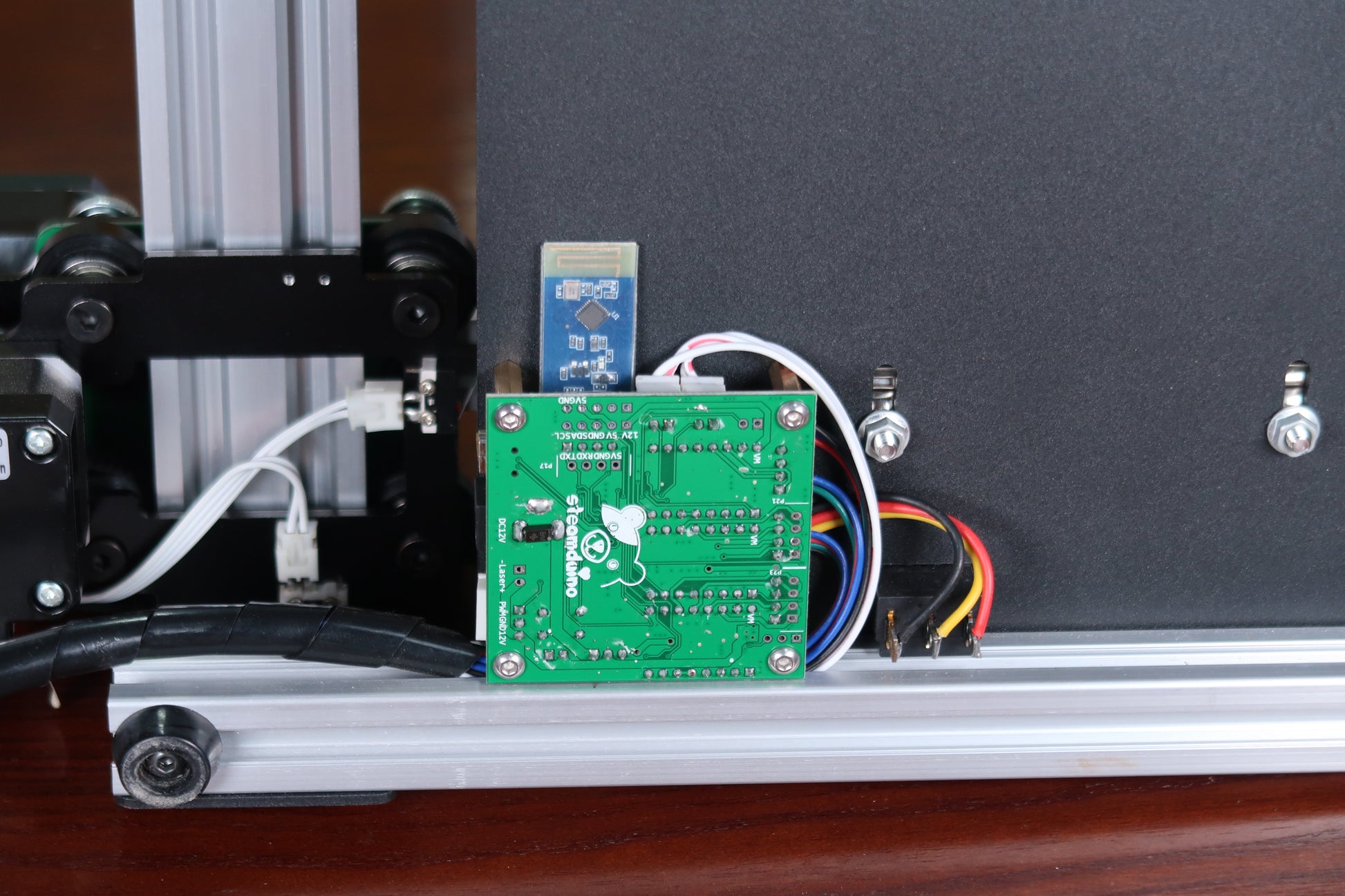

Impulsado por la placa base Drawcore V2.0 y equipado con firmware compatible con GRBL, representa la cúspide de la innovación.
Logra una precisión mecánica impecable con una resolución mínima de 0,01 mm en los ejes Y y X, asegurando que cada trazo sea simplemente perfecto.
Con cabezales láser que van desde 500 mW hasta 2,5 W, puedes grabar una variedad de materiales, desde madera y plásticos hasta cuero y papel.
Administra sin problemas la tasa de potencia, la velocidad de grabado y los formatos de entrada con los complementos de control UUNA TEK 2.0.

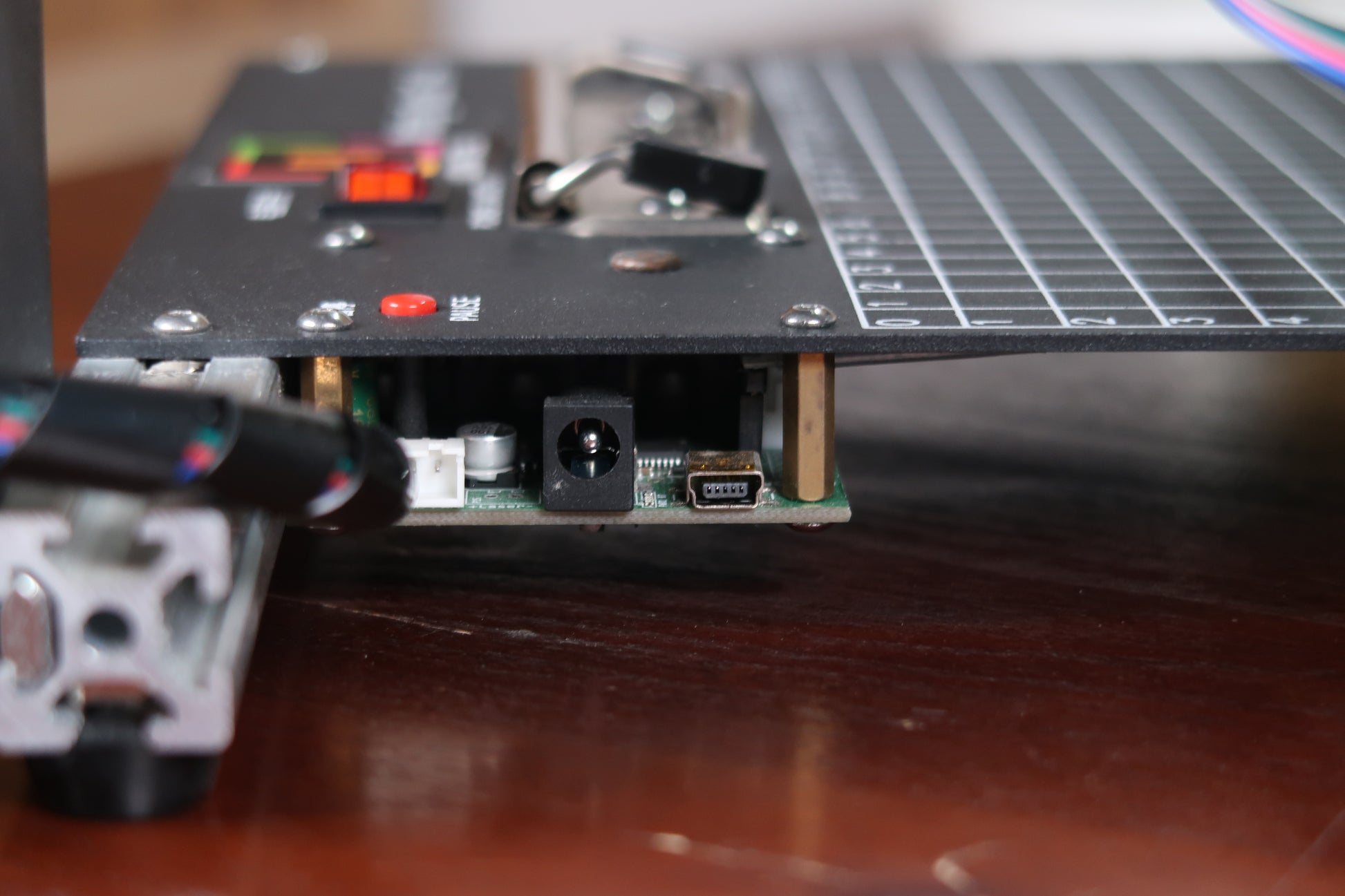

Conéctese mediante USB o Bluetooth, ofreciendo compatibilidad con una variedad de sistemas operativos, incluyendo Windows 7/8/10/11 o superior, Mac OS y Linux.
1 X UUNA TEK iDraw 2.0 Plotter de Pluma A4
1 X Placa Base A4
1 X Kit de Herramientas
1 X Guía de Inicio Rápido
1 X Tarjeta de Agradecimiento
Descarga el software Inkscape y archivos extensos aquí>>>.
Puedes encontrar el software para Windows, Mac, Linux, así como la guía de ensamblaje para hardware y los detalles de instalación del software.
Para quienes necesitan funciones avanzadas:
1. Para quienes necesitan la función de guardar el archivo de trazado, por favor descarga esta versión>>>
2. Para quienes necesitan la función de combinación de correo,
Windows: por favor descarga esta versión>>>
Mac o Linux, por favor descarga esta versión>>>
3. Para quienes necesitan función láser, por favor descarga esta versión>>>
4. ¿Y si tengo conocimientos básicos de programación y quiero ajustar los parámetros originales para romper la limitación de velocidad? Por favor descarga esta versión>>>
Para el plotter de bolígrafo UUNA TEK 1.0, por favor consulta los tutoriales en video aquí>>>
Para el plotter de bolígrafo UUNA TEK 2.0, por favor consulta los tutoriales en video aquí>>>
Para el plotter de bolígrafo UUNA TEK H, por favor consulta los tutoriales en video aquí>>>
Para el software, por favor consulta el video aquí>>>
Para la función láser, por favor consulta los tutoriales en video aquí>>>
Política de Envíos: Todos los pedidos se procesarán en un plazo de 48 horas hábiles. Todos los paquetes se enviarán con DHL/UPS/USPS desde nuestros almacenes en China o el almacén de Amazon, y tardarán de 5 a 7 días hábiles en llegar a su destino. Alerta de retrasos durante las temporadas de ventas. Consulta la política completa aquí>>>
Política de Devoluciones: Ofrecemos una garantía de 1 año para todos los productos. La devolución y el reembolso gratuitos solo se aplican en caso de problemas de calidad o daños durante la entrega. Contáctanos a través de support@uunatek.com antes de devolver el producto. Consulta la política completa aquí>>>
Ve a la Extensión de Control iDraw 2.0, elige Opciones->Configuración->Modelo iDraw: iDraw A4.
Aquí tienes algunos consejos para usar Auto Home.

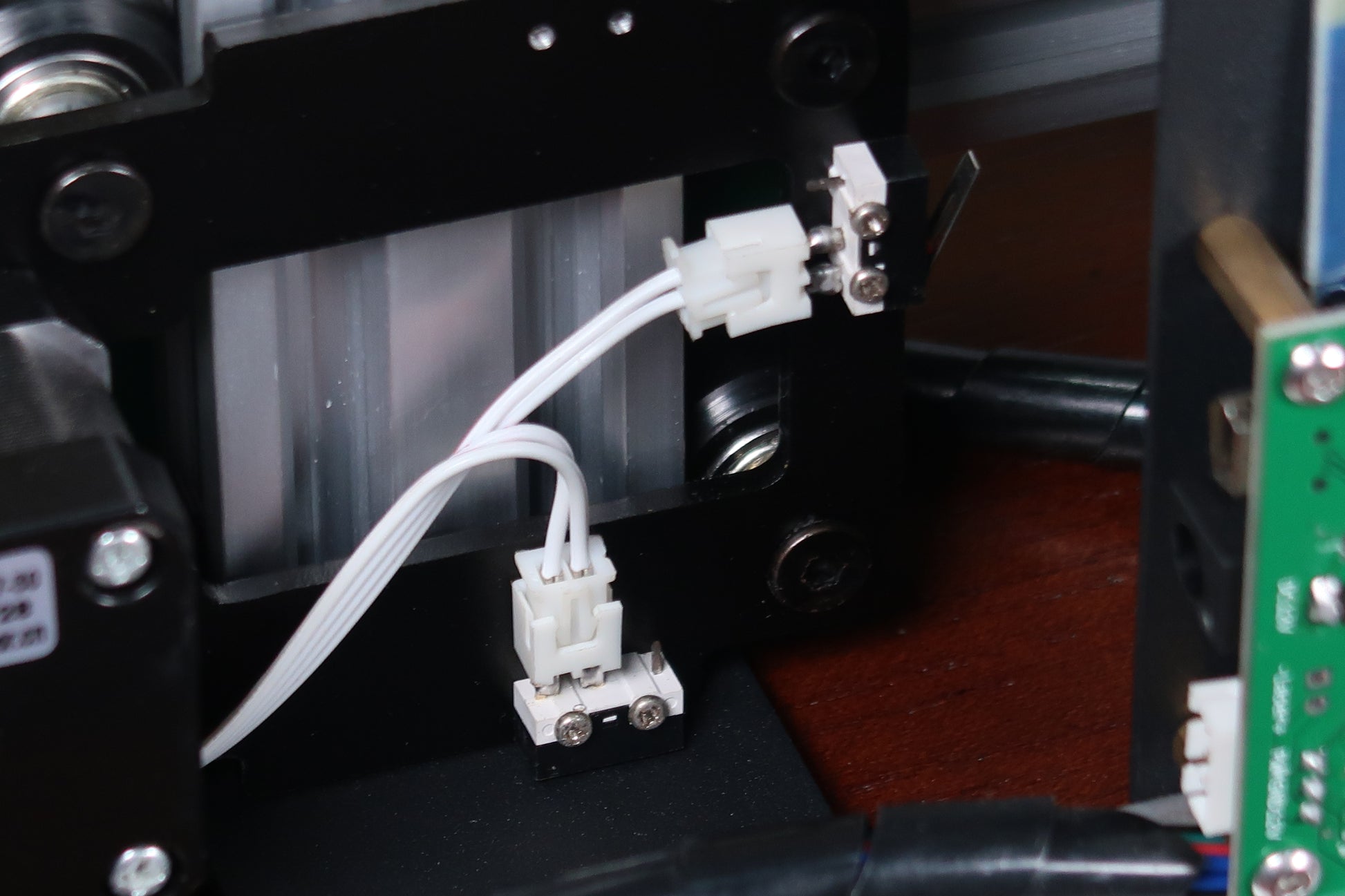

1. Verifica que los cables del interruptor de contacto estén conectados correctamente, sigue esta guía: https://www.youtube.com/watch?v=5B4nb2k6eAc

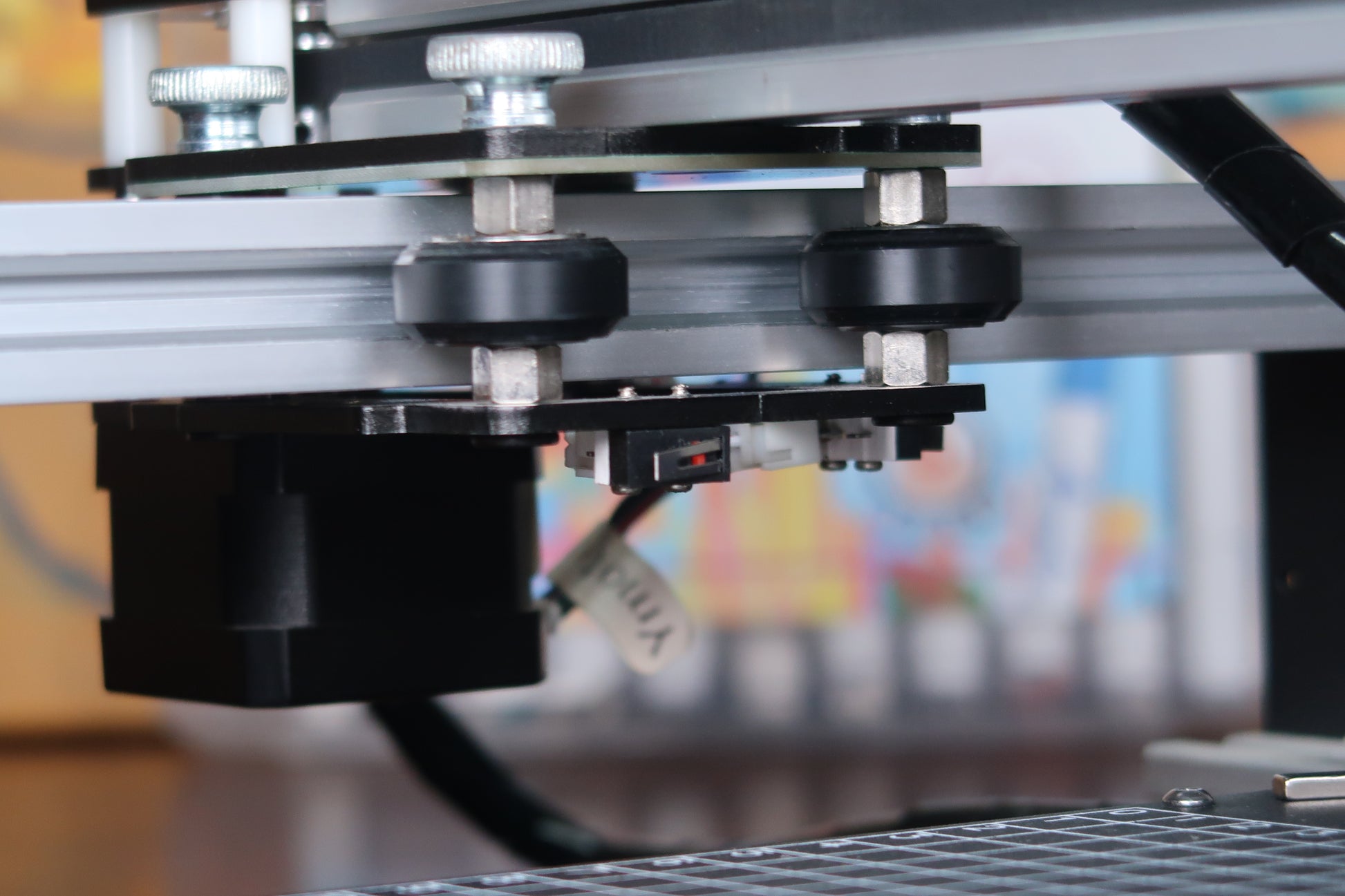

2. Mueve manualmente el carro del eje X hacia la izquierda hasta donde pueda llegar, y verifica si toca el interruptor de contacto del eje X.

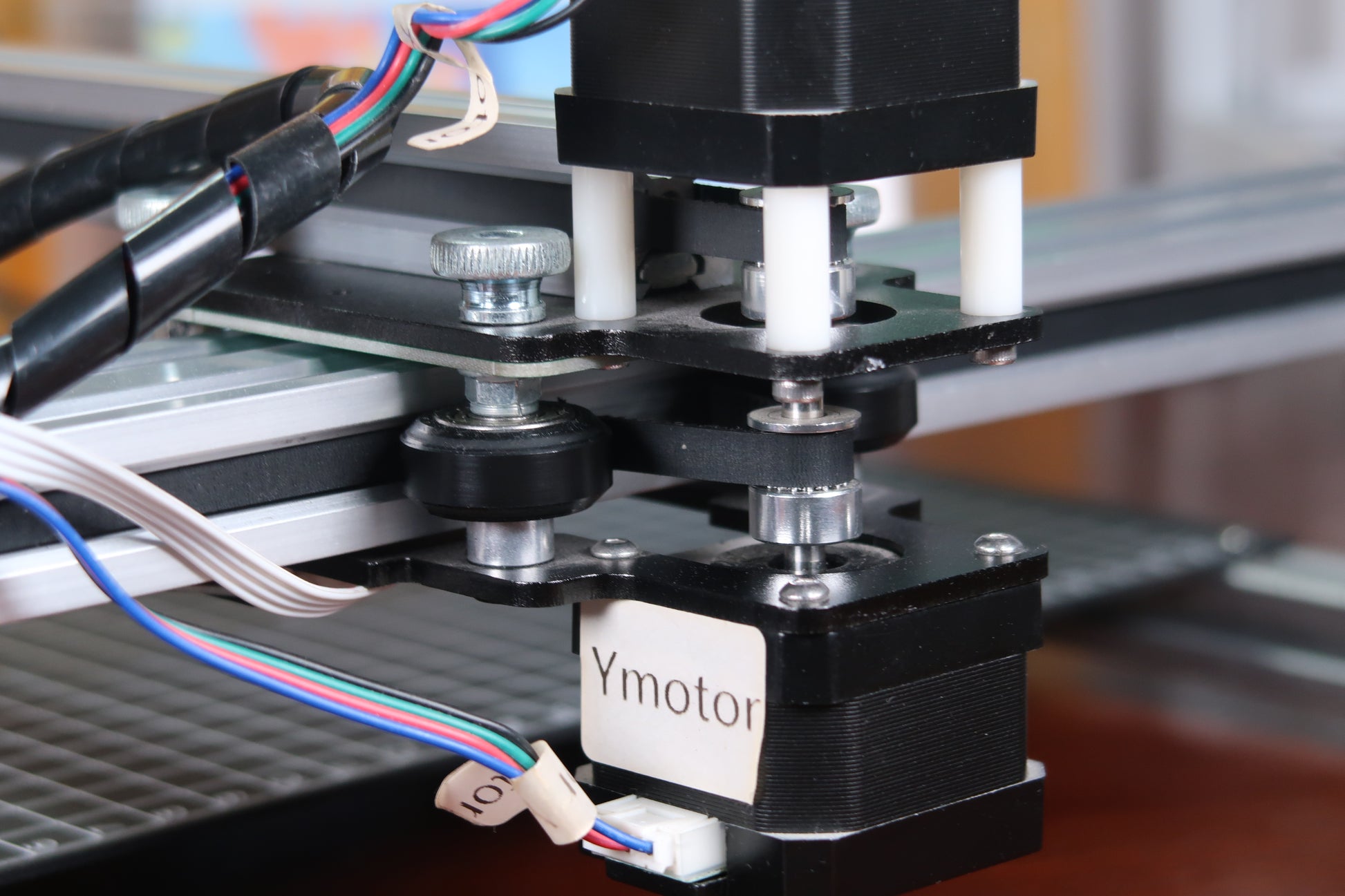

3. Mueve manualmente el carro del eje Y hacia la parte trasera hasta donde pueda llegar, y verifica si toca el interruptor de contacto del eje Y.
4. Asegúrate de que los cables estén correctamente organizados para que no se enganchen en los carros XY, revisa esta guía para organizar el cable del eje Z: https://www.youtube.com/watch?v=LTwPYPh3rdE
Sí, puedes reanudar tu trabajo después de presionar el botón rojo de parada de emergencia. Una vez presionado, la máquina se pausará y esperará instrucciones adicionales. Para continuar:
👉 Consejo: Asegúrate siempre de elegir la opción de reanudar correcta según el progreso de tu proyecto para evitar superposiciones o dibujos incompletos.

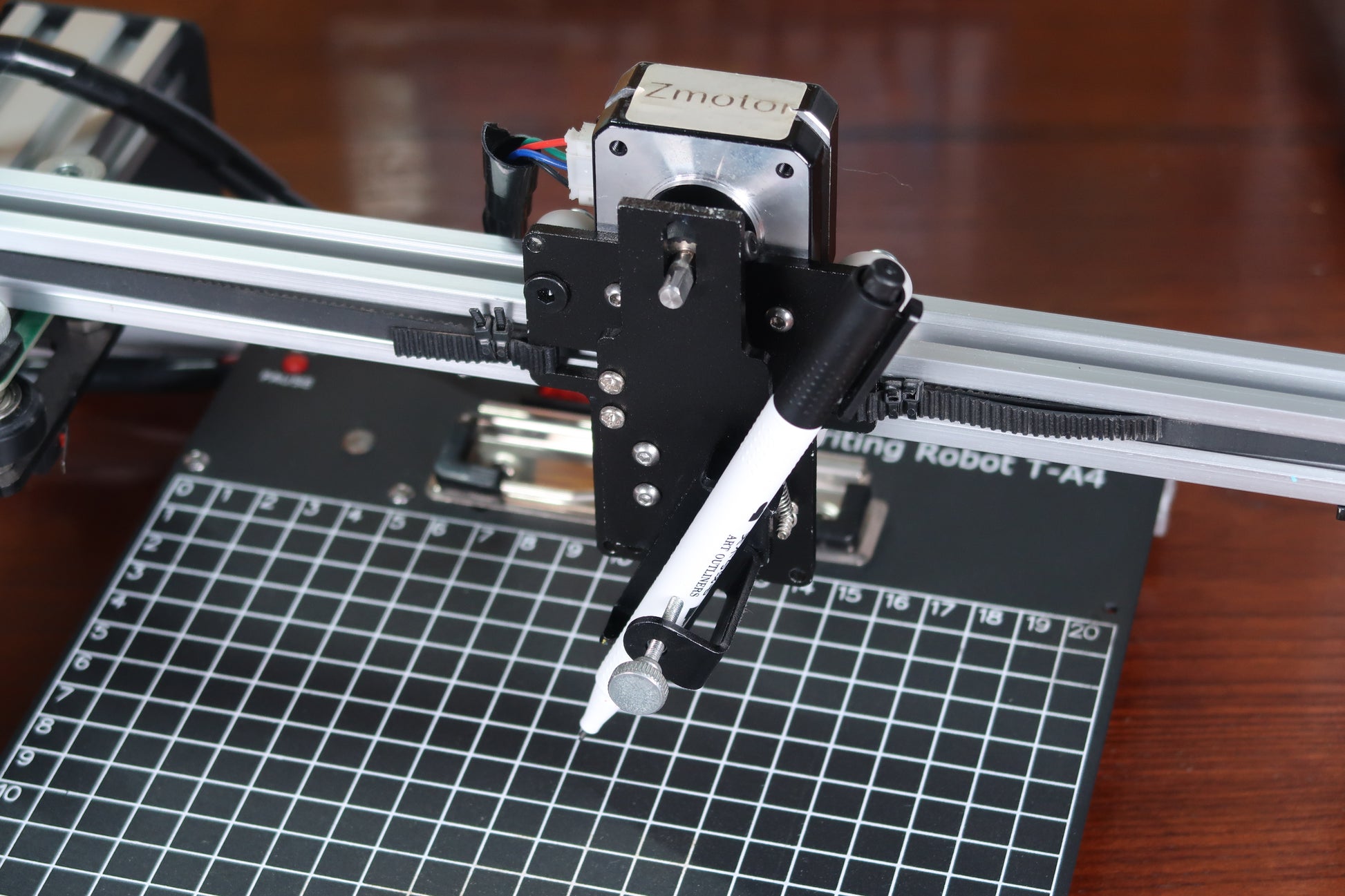

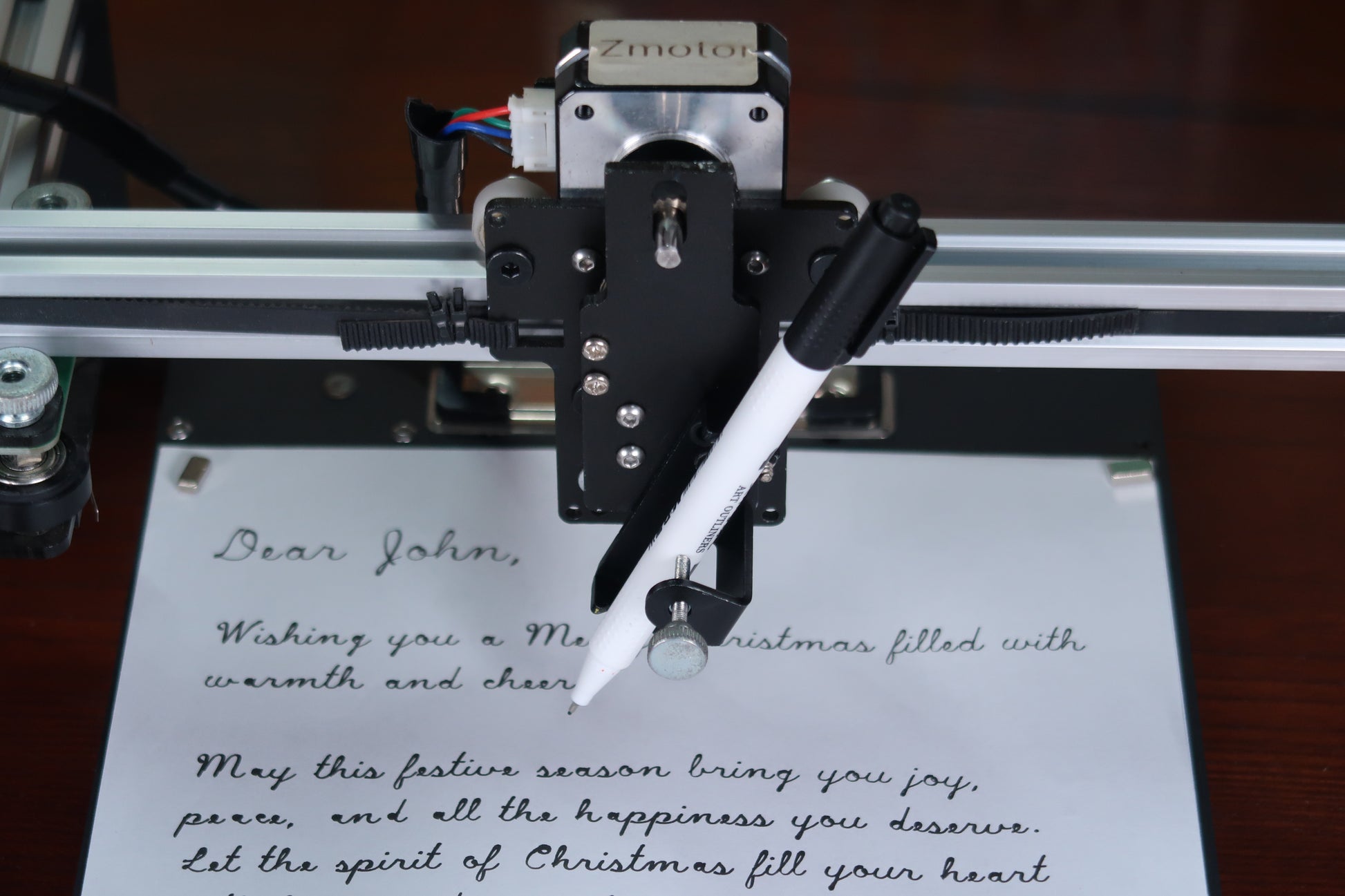

Sí, el eje Z puede ajustar la distancia de trabajo de 0 a 10 mm.
Sí, se puede controlar el tiempo de escritura.
Sí, admite comandos G-code. El firmware de la placa base es compatible con GRBL.
Sí, puede. La máquina soporta cargas de hasta 200 gramos y un diámetro máximo de 15 mm.
El código limita la altura del eje Z por defecto, puedes ajustar las siguientes configuraciones como en las imágenes para obtener mayor flexibilidad.
1.idraw_deps>idraw2_0internal>idraw.py
Ajusta la altura de 10 a la altura que esperabas, como 30, en self.options.pen_pos_up y self.options.pen_pos_down.
2. idraw2_0.inx
Ajusta el max="10.0" a la altura que prefieras en <param name="pen_pos_down" type="float" min="0.1" max="10.0" _gui-text="Altura del bolígrafo:BAJO, (mm):">5.0</param>
The process with Inkscape was slower than expected, since you need to convert text to path to plot. I was hoping it was faster. The robot itself is very good.
Very dissapointed to see the item so heavily discounted so short after purchase.
TLDR: This machine's great, as advertised, works great, software and hardware is very easy to learn. Will be buying more of this particular product, or switching to there other higher output machines - super impressed.
My handwritings god awful, but I'm involved in a couple of different ventures that offering a personal touch goes a long way - I wanted to produce a couple hundred letters here and there to send to potential clients, and was looking for a machine to get it done.
Was anxious given that most of the machines to this caliber, are a couple of hundred dollars - in this economy, spending a couple hundred dollars for a garbage machine that barely works?
Well, Uuna Tek FAR exceeded expectations - the unit was delivered far ahead of schedule (by just about a week), and have been printing ever since without a single hiccup. Obviously the machine takes some tweaking with the Inkscape 2.0 Controller extension depending on what type of paper, you're using/positioning, but it's completely user dependent at that point. The actual function and usability of the machine is stellar, I'd highly recommend.
This is a great pen plotter for getting into the plotting world. It was fairly easy to setup and runs via Inkscape to print. The plotter is accurate and fits almost any pen there is due to a universal pen clamp. Unfortunately the only issue I had was one of the legs on the plotter was damaged in shipping but not a big deal, plotter is sill fully functional.
is a solid and accessible tool for creative experimentation. My experience using it for generative art, handwriting-style drawings, and custom illustrations has been very positive. The setup with SVG files is straightforward, the machine produces clean, consistent lines. It fits well into a simple digital-to-physical creative workflow. Recommended!
I am extremely satisfied with my iDraw 2.0 Pen Plotter. The machine is very precise, easy to set up, and works smoothly with different types of pens. I mainly use it for calligraphy, logo design, and technical drawings, and the results are always clean and professional. The software is user-friendly and the plotting speed is impressive. This machine has saved me a lot of time and helped me improve the quality of my creative projects. I highly recommend it for artists, designers, and anyone who loves digital-to-physical creation.
Vom Prudukt selbst bis hin zum Support und auch der Versand war reibungslos. Vielen dank, würde ich immer wieder kaufen
Sé el primero en enterarte de las novedades y ofertas exclusivas.
We run a mid-sized company in the D2C space and bought the Uunatek iAuto Handwriting Robot primarily to test whether handwritten customer communication could move the needle for us.
Short answer: it did.
What we like (Pros)
The biggest impact for us was customer loyalty. Handwritten notes simply feel different. They cut through the noise of emails and automated flows. We used the robot for targeted follow-up letters, especially review requests — and saw about a 20% increase in review submissions compared to our previous process. Pro Tipp: If you use a stamp instead of a printed code the likelihood of the customer to open the letter is increased!
It made our brand feel more human and intentional, even though the process is automated behind the scenes.
The machine itself feels solid and well-built. It doesn’t feel like a gimmicky desktop gadget. It runs reliably and gives a professional output.
You're not locked into proprietary pens. We tested different fineliners, ballpoints, and even slightly thicker markers depending on the paper stock. That flexibility makes a big difference if you care about brand aesthetics.
There’s a CURL API interface. It’s definitely more for professionals, but it’s not impossible to work with. If you’re comfortable with basic API integrations, you can automate things quite deeply (e.g., connecting it to order triggers or CRM exports).
For us, that’s where the real power lies.
What could be better (Cons)
1. The GUI software feels outdated
The main downside: the graphical software feels a bit old-school. It works, but the UX/UI could definitely use a refresh. It’s functional, not beautiful.
If you’re expecting a super modern SaaS-style interface, you might be slightly disappointed.
Final Thoughts:
If you're just looking for a novelty device, this might be overkill.
But if you're running a business and thinking seriously about offline customer touchpoints in a digital world, this thing is extremely interesting.
For us, it paid off — especially in review generation and perceived brand value.
Happy to answer questions if anyone is considering it.
Setting up and installing was very straightforward. Was working with A3 plotters from before, but the change in scale makes an order of magnitude in differences. Very precise, easy to setup drawing material with the inkscape extension. If you have available space (had to reconfigure my whole studio due its size) I can highly recommend this drawing machine.
My first pen plotter the Uuna Tek H A3. I settled on this make and model after watching many videos on YouTube. Uuna Tek consistently came out looking the best so I took the plunge and pressed the buy it now button. A week later I had a large box delivered! Opening the box, it's clear the machine was well packed to withstand shipping. A "hand written" thank you card was a nice touch. Assembly was simple and straightforward. The machine is nicely designed and definitely has a quality feel to it. The software was easy to install, I used the inkscape download (with plugins pre-installed) from the Uuna Tek website. All very straightforward and simple! I've attached a couple of my first prints. I'm absolutely delighted with the machine and the quality of the plots it produces. If you, like I was, are initialising hesitating to press "buy it now" - then don't. Press that button - you won't regret it! Regards to you all from a very wet UK.
I purchased this plotter because previously I bought a Silhouette Cameo 4 Pro. That worked but it made a lot of noise and it was very hard to align multiple layers.
This plotter however solved both these issues for me. It is quiet enough to have it running in my room while my son is sleeping in his room next to it. So that's really a big plus.
Also aligning it and doing multiple layers was super easy.
Mounting it took me about 20 minutes. Which was also very easy.
All in all couldn't be more happier with this purchase.
May someday get the A0 version even.
I am absolutely loving my UUNA TEK iDraw H A3 Pen Plotter! I have been using it every single day since I got it. One of the best things about it was the setup process. It was incredibly easy to assemble and get running right out of the box. The instructions were clear, and I didn't run into any issues at all.
I'm attaching a few pictures of the projects I've created with this plotter so far. It's a fantastic tool and I highly recommend it!
